Debugging Multithreaded Applications

Debugging multi-threaded applications can be a daunting task, particularly in an interactive debugger that is designed to operate on one thread at a time. libdebug offers a few features that will help you debug multi-threaded applications more intuitively and efficiently.

Child Threads

libdebug automatically registers new threads and exposes their state with the same API as the main Debugger object. While technically threads can be running or stopped independently, libdebug will enforce a coherent state. This means that if a live thread is stopped, all other live threads will be stopped as well and if a continuation command is issued, all threads will be resumed.

stateDiagram-v2
    state fork_state <<fork>>
    [*] --> fork_state: d.interrupt()
    fork_state --> MainThread: STOP
    fork_state --> Child1: STOP
    fork_state --> Child2: STOP

    state join_state <<join>>
    MainThread --> join_state
    Child1 --> join_state
    Child2 --> join_state

    state fork_state1 <<fork>>
    join_state --> fork_state1: d.cont()
    fork_state1 --> MainThread_2: CONTINUE
    fork_state1 --> Child11: CONTINUE
    fork_state1 --> Child22: CONTINUE

    state join_state2 <<join>>
    MainThread_2 --> join_state2
    Child11 --> join_state2
    Child22 --> join_state2

    state fork_state2 <<fork>>
    join_state2 --> fork_state2: Breakpoint on Child 2
    fork_state2 --> MainThread_3: STOP
    fork_state2 --> Child111: STOP
    fork_state2 --> Child222: STOP

    state join_state3 <<join>>
    MainThread_3 --> join_state3
    Child111 --> join_state3
    Child222 --> join_state3

    %% State definitions with labels
    state "Main Thread" as MainThread
    state "Child 1" as Child1
    state "Child 2" as Child2
    state "Main Thread" as MainThread_2
    state "Child 1" as Child11
    state "Child 2" as Child22
    state "Main Thread" as MainThread_3
    state "Child 1" as Child111
    state "Child 2" as Child222

All live threads are syncronized in their execution state.

libdebug API for Multithreading

To access the threads of a process, you can use the threads attribute of the Debugger object. This attribute will return a list of ThreadContext objects, each representing a thread of the process.

If you're already familiar with the Debugger object, you'll find the ThreadContext straightforward to use. The Debugger has always acted as a facade for the main thread, enabling you to access registers, memory, and other thread state fields exactly as you would for the main thread. The difference you will notice is that the ThreadContext object is missing a couple of fields that just don't make sense in the context of a single thread (e.g. symbols, which belong to the binary, and memory maps, since they are shared for the whole process).

from libdebug import debugger

d = debugger("./so_many_threads")
d.run()

# Reach the point of interest
d.breakpoint("loom", file="binary")
d.cont()
d.wait()

for thread in d.threads:
    print(f"Thread {thread.tid} stopped at {hex(thread.regs.rip)}")
    print("Function frame:")

    # Retrieve frame boundaries
    frame_start = thread.regs.rbp
    frame_end = thread.regs.rsp

    # Print function frame
    for addr in range(frame_end, frame_start, 8):
        print(f"  {addr:#16x}: {thread.memory[addr:addr+8].hex()}")

[...]

Properties of the ThreadContext

Property	Type	Description
`regs`	Registers	The thread's registers.
`debugger`	Debugger	The debugging context this thread belongs to.
`memory`	AbstractMemoryView	The memory view of the debugged process (`mem` is an alias).
`instruction_pointer`	`int`	The thread's instruction pointer.
`process_id`	`int`	The process ID (`pid` is an alias).
`thread_id`	`int`	The thread ID (`tid` is an alias).
`running`	`bool`	Whether the process is running.
`saved_ip`	`int`	The return address of the current function.
`dead`	`bool`	Whether the thread is dead.
`exit_code`	`int`	The thread's exit code (if dead).
`exit_signal`	`str`	The thread's exit signal (if dead).
`syscall_arg0`	`int`	The thread's syscall argument 0.
`syscall_arg1`	`int`	The thread's syscall argument 1.
`syscall_arg2`	`int`	The thread's syscall argument 2.
`syscall_arg3`	`int`	The thread's syscall argument 3.
`syscall_arg4`	`int`	The thread's syscall argument 4.
`syscall_arg5`	`int`	The thread's syscall argument 5.
`syscall_number`	`int`	The thread's syscall number.
`syscall_return`	`int`	The thread's syscall return value.
`signal`	`str`	The signal will be forwarded to the thread.
`signal_number`	`int`	The signal number to forward to the thread.
`zombie`	`bool`	Whether the thread is in a zombie state.

Methods of the ThreadContext

Method	Description	Return Type
`set_as_dead()`	Set the thread as dead.	`None`
`step()`	Executes a single instruction of the process (`si` is an alias).	`None`
`step_until(position: int, max_steps: int = -1, file: str = "hybrid")`	Executes instructions of the process until the specified location is reached (`su` is an alias).	`None`
`finish(heuristic: str = "backtrace")`	Continues execution until the current function returns or the process stops (`fin` is an alias).	`None`
`next()`	Executes the next instruction of the process. If the instruction is a call, the debugger will continue until the called function returns (`fin` is an alias).	`None`
`backtrace(as_symbols: bool = False)`	Returns the current backtrace of the thread (see Stack Frame Utils).	`list`
`pprint_backtrace()`	Pretty prints the current backtrace of the thread (see Pretty Printing).	`None`
`pprint_registers()`	Pretty prints the thread's registers (see Pretty Printing).	`None`
`pprint_regs()`	Alias for the `pprint_registers` method (see Pretty Printing).	`None`
`pprint_registers_all()`	Pretty prints all the thread's registers (see Pretty Printing).	`None`
`pprint_regs_all()`	Alias for the `pprint_registers_all` method (see Pretty Printing).	`None`

Meaning of the debugger object

When accessing state fields of the Debugger object (e.g. registers, memory), the debugger will act as an alias for the main thread. For example, doing d.regs.rax will be equivalent to doing d.threads[0].regs.rax.

Shared and Unshared State

Each thread has its own register set, stack, and instruction pointer. However, the virtual address space is shared among all threads. This means that threads can access the same memory and share the same code.

How to access TLS?

While the virtual address space is shared between threads, each thread has its own Thread Local Storage (TLS) area. As it stands, libdebug does not provide a direct interface to the TLS area.

Let's see a couple of things to keep in mind when debugging multi-threaded applications with libdebug.

Software Breakpoints

Software breakpoints are implemented through code patching in the process memory. This means that a breakpoint set in one thread will be replicated across all threads.

When using synchronous breakpoints, you will need to "diagnose" the stopping event to determine which thread triggered the breakpoint. You can do this by checking the return value of the hit_on() method of the Breakpoint object. Passing the ThreadContext as an argument will return True if the breakpoint was hit by that thread.

Diagnosing a Synchronous Breakpoint

thread = d.threads[2]

for addr, bp in d.breakpoints.items():
    if bp.hit_on(thread):
        print(f"Thread {thread.tid} hit breakpoint {addr:#x}")

When using asynchronous breakpoints, the breakpoint will be more intuitive to handle, as the signature of the callback function includes the ThreadContext object that triggered the breakpoint.

Handling an Asynchronous Breakpoint

def on_breakpoint_hit(t, bp):
    print(f"Thread {t.tid} hit breakpoint {bp.address:#x}")

d.breakpoint(0x10ab, callback=on_breakpoint_hit, file="binary")

Hardware Breakpoints and Watchpoints

While hardware breakpoints are thread-specific, libdebug mirrors them across all threads. This is done to avoid asymmetries with software breakpoints. Watchpoints are hardware breakpoints, so this applies to them as well.

For consistency, syscall handlers are also enabled across all threads. The same considerations for synchronous and asynchronous breakpoints apply here as well.

Concurrency in Syscall Handling

When debugging entering and exiting events in syscalls, be mindful of the scheduling. The kernel may schedule a different thread to handle the syscall exit event right after the enter event of another thread.

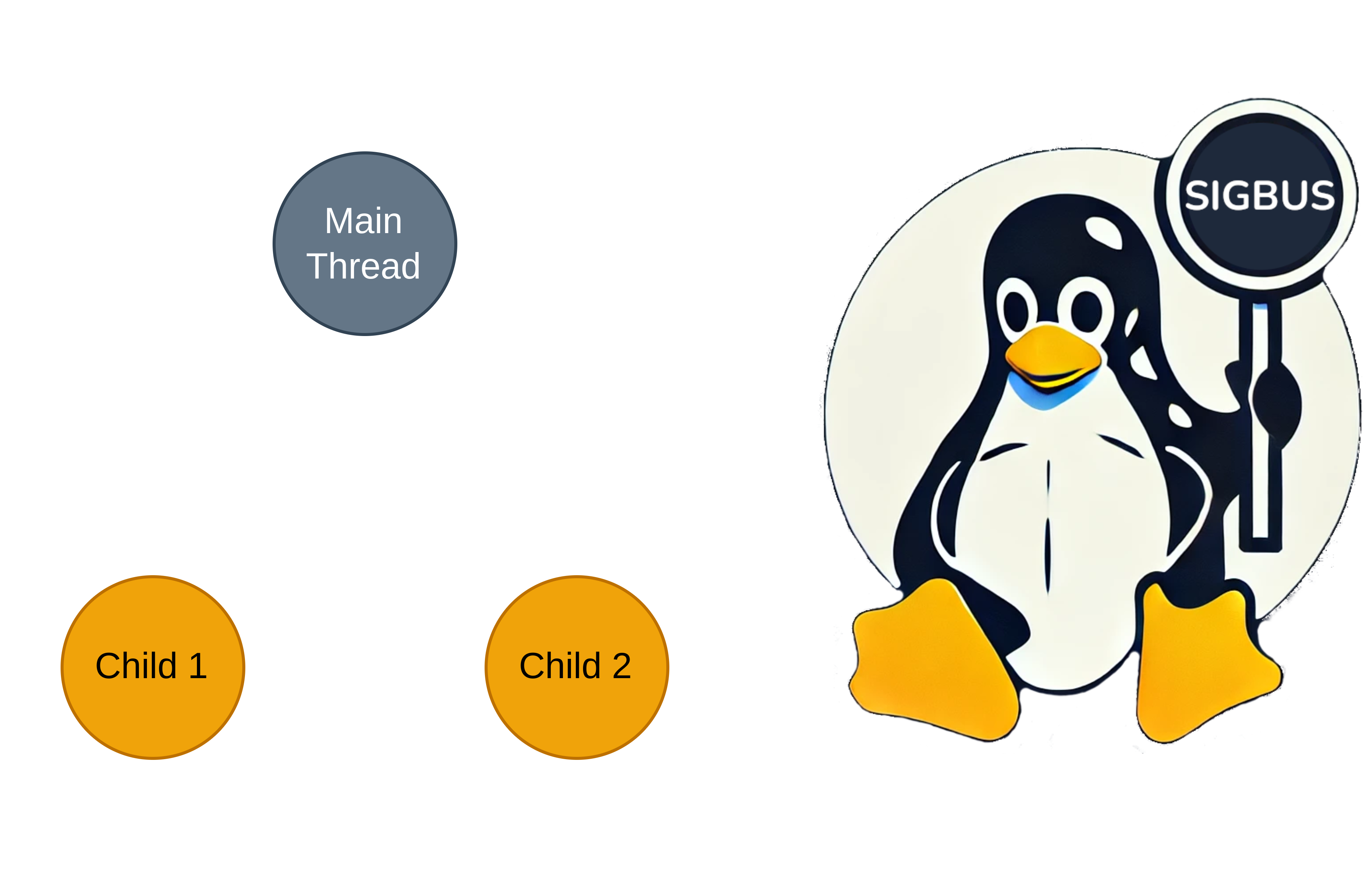

Signal Catching

Who will receive the signal?

Signal Catching is also shared among threads. Apart from consistency, this is a necessity. In fact, the kernel does not guarantee that a signal sent to a process will be dispatched to a specific thread. By contrast, when sending arbitrary signals through the ThreadContext object, the signal will be sent to the requested thread.

Snapshot Behavior

When creating a snapshot of a process from the corresponding Debugger object, the snapshot will also save the state of all threads. You can also create a snapshot of a single thread by calling the create_snapshot() method from the ThreadContext object instead. Read more about snapshots in the Save States section.

Zombie Threads

When a thread or process terminates, it enters a zombie state. This is a temporary condition where the process is effectively dead but awaiting reaping by the parent or debugger, which involves reading its status. Reaping traced zombie threads can become complicated due to certain edge cases.

While libdebug automatically handles the reaping of zombie threads, it provides a property named zombie within the ThreadContext object, indicating whether the thread is in a zombie state. The same property is also available in the Debugger object, indicating whether the main thread is in a zombie state.

Example Code

if d.threads[1].zombie:
    print("The thread is a zombie")

sequenceDiagram
    participant Parent as Parent Process
    participant Child as Child Thread
    participant Kernel as Linux Kernel

    Note over Parent,Kernel: Normal Execution Phase
    Parent->>Child: clone()
    activate Child
    Child->>Kernel: Task added to the Process Table
    Kernel-->>Child: Thread ID

    Note over Parent,Kernel: Zombie Creation Phase
    Child->>Kernel: exit(statusCode)
    deactivate Child
    Note right of Kernel: Parent will be<br/>notified of exit
    Kernel->>Parent: SIGCHLD
    Note right of Parent: Parent Busy<br/>Cannot Process Signal

    Note over Parent,Kernel: Zombie State
    Note right of Child: Thread becomes<br/>zombie (defunct)<br/>- Maintains TID<br/>- Keeps exit status<br/>- Consumes minimal resources

    Note over Parent,Kernel: Reaping Phase
    Parent->>Kernel: waitpid()
    Kernel-->>Parent: Return Exit Status
    Kernel->>Kernel: Remove Zombie Entry<br/>from Process Table
    Note right of Kernel: Resources Released
